The smartest transit mixer control system
Agicon is a registered trademark of imerge networks pty ltd - used with permission
safe
rugged
reliable
smarter
better
The Agicon control system is designed and manufactured in Australia by electronics engineers with more than 20
years experience in the control o findustrial and hydraulic machinery.
Components
Features

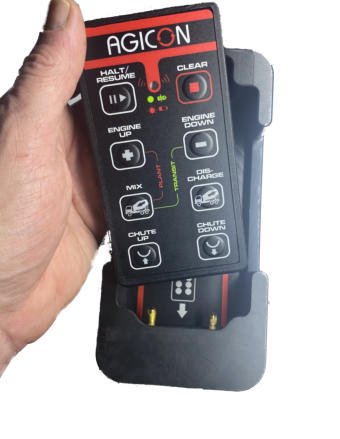

Agicon radio remote control

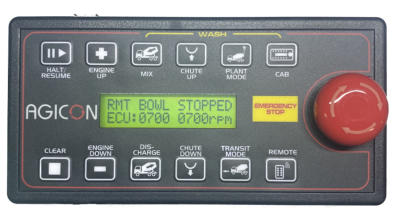

In-cab controller
ACM-01 Control System
- Rugged and compact
- Supplied with protective silicon cover for arduous operating
conditions.
- Interference-free Frequency Hopping Spread Spectrum(FHSS)
technology
- Superior operating range
- Clear and intuitive icons
- Tactile feedback with long-travel buttons
- Internal replaceable battery is charged in the storage cradle
- Missing-transmitter detection helps prevent lost remotes
- Dual-channel emergency-stop
- Embossed Tactile buttons
- Backlit screen and keypad with night-time dimming
- Compact dash mounting
- No clumsy & dangerous boxes or switches
- Used to configure and backup the Control Board settings
- Compact rugged enclosure easy to mount
- Programmable for all truck and pump models
- Direct J1939 interface minimises installation time
- Multi-voltage 12/24V system allows the optional use of 12V coils
on 24V trucks, simplifying design, inventory, and spare parts.
-Dual-channel monitored Emergency-Stop with self-test
-Fail-safe STOP mushrooms on the remote control cab controller, and
chassis
- Dual control modes - cab or remote
- Safe passing of control from one to the other
- Manual or automatic changeover
- Responsive control of mix/discharge
- Individually adjustable minimum speed, maximum speed, ramp time, and
changeover time from mix-discharge
- Protected against accidental discharge by dual-channel outputs, and
stuck-button monitoring
- Direct engine monitor via J1939
- Adjustable minimum, maximum, and ramp speeds
- Supports all truck types
- Remote-throttleo output (or cruise-control if preferred)
- Maintains constant bowl speed when driving for product consistency and
to minimise bowl wear
- Easily adjusted transit speed can be memorised or temporarily increased
for steep hills, etc.
- Optional auto-transit triggered by road speed
- Single-key ramps to full engine and bowl speed (or other configured
speed)
- Supports remote throttle or cruise-control configurations
- Can swap immediately to transit mode by driving up to road speed
- Super-responsive control for accurate positioning
- 12V coils controllable from 24V
- Pause and resume operation for repeated operations
- Memorised pump and engine speed
- Perfect for block-fill and wheelbarrow work
- Clear removes any stored settings to prevent accidental resume
- Fully configurable wash-out mode
- Multiple forward-reverse cycles programmable for thorough clean
- Programmable final discharge can sound horn when complete
Rear Control Station
- IP65 Emergency-Stop Station
- Optional Chute-Up/Down Controls
agicon is a registered trademark of imerge networks pty ltd
used with permission
The smartest transit mixer control system
The Agicon control system is designed and manufactured in Australia by
electronics engineers with more than 20 years experience in the control of
industrial and hydraulic machinery.
Components
Features
Agicon remote control
In-cab controller
ACM-01 Control Board
- Rugged and compact
- Supplied with protective silicon cover for
arduous operating conditions.
- Interference-free Frequency Hopping Spread
Spectrum(FHSS) technology
- Superior operating range
- Clear and intuitive icons
- Tactile feedback with long-travel buttons
- Internal replaceable battery is charged in the
storage cradle
- Missing-transmitter detection helps prevent
lost remotes
- Dual-channel emergency-stop
- Embossed Tactile buttons
- Backlit screen and keypad with night-
time dimming
- Compact dash mounting
- No clumsy & dangerous boxes or
switches
- Used to configure and backup the
Control Board settings
- Compact rugged enclosure - easy to
mount
- Programmable for all truck and pump
models
- Direct J1939 interface minimises
installation time
- Multi-voltage 12/24V system allows the
optional use of 12V coils on 24V trucks,
simplifying design, inventory, and spare
parts.
-Dual-channel monitored Emergency-Stop
with self-test
-Fail-safe STOP mushrooms on the remote
control cab controller, and chassis
- Dual control modes - cab or remote
- Safe passing of control from one to the
other
- Manual or automatic changeover
- Responsive control of mix/discharge
- Individually adjustable minimum speed,
maximum speed, ramp time, and
changeover time from mix-discharge
- Protected against accidental discharge by
dual-channel outputs, and stuck-button
monitoring
- Direct engine monitor via J1939
- Adjustable minimum, maximum, and ramp
speeds
- Supports all truck types
- Remote-throttleo output (or cruise-control
if preferred)
- Maintains constant bowl speed when
driving for product consistency and to
minimise bowl wear
- Easily adjusted transit speed can be
memorised or temporarily increased for
steep hills, etc.
- Optional auto-transit triggered by road
speed
- Single-key ramps to full engine and bowl
speed (or other configured speed)
- Supports remote throttle or cruise-control
configurations
- Can swap immediately to transit mode by
driving up to road speed
- Super-responsive control for accurate
positioning
- 12V coils controllable from 24V
- Pause and resume operation for repeated
operations
- Memorised pump and engine speed
- Perfect for block-fill and wheelbarrow work
- Clear removes any stored settings to
prevent accidental resume
- Fully configurable wash-out mode
- Multiple forward-reverse cycles
programmable for thorough clean
- Programmable final discharge can sound
horn when complete
Rear Control Station
- IP65 Emergency-Stop Station
- Optional Chute-Up/Down Controls
